Chemically, BOPET film comes from raw PET resin. However, you will find major physical differences between them. Standard polyethylene terephthalate serves as the basic chemical resin. Standard PET film uses simple melting and cooling. In contrast, technicians stretch BOPET in two directions during specialized manufacturing. This two-way stretching process aligns the internal polymer chains. You gain better mechanical strength, improved heat stability, and reliable electrical resistance. Standard PET changes shape under heat and stretches easily. Biaxially oriented material resists tearing and keeps its shape under stress. Therefore, engineers choose this special film for demanding industrial uses like motor insulation and flexible circuit boards.

Understanding PET as the Base Polymer Resin

Chemical Foundation of Polyethylene Terephthalate

Polymeric Structure and Chemical Composition

You can learn about this basic material by studying its chemical building blocks. Factories create this plastic resin using two primary reaction routes. They mix ethylene glycol with either terephthalic acid or dimethyl terephthalate.

• Raw material preparation: Workers start with pure ethylene glycol and terephthalic acid (or DMT ester).

• Polymerization: They heat and melt the mixture under vacuum with a catalyst to build long PET chains.

The standard synthesis options follow these specific parameters:

Extrusion Process of Unoriented Polyester Resin

Machines melt these long plastic chains inside a heated extruder. The equipment pushes molten PET resin through a flat die. Chilled rollers cool the hot liquid rapidly. This fast cooling solidifies the material into an amorphous sheet before significant crystallization can occur.

People call this plain polyester plastic a cast sheet. The polymer chains inside remain randomly oriented. Modern recycling steps help make this raw starting plastic more eco-friendly. Still, simple melting leaves the long polymer chains disordered and entangled. You get a basic plastic sheet with standard chemical properties.

Physical Limitations of Standard PET Sheet

Baseline Heat Tolerance and Thermal Properties

Basic unoriented film has clear weaknesses when exposed to heat. Its disordered internal structure lowers its ability to withstand elevated temperatures. Warm conditions can soften this unaligned plastic film during operation.

You can use this plain plastic for water bottles or simple food containers. Demanding settings require much stronger heat resistance. High temperatures can warp basic unoriented PET sheets. Normal heat forces these unaligned materials out of shape during demanding applications.

Mechanical Strength Limits Without Stretching

Plain polyethylene terephthalate is not very strong unless you stretch it further. Unstretched plastic can tear under heavy pulling forces. You will see that basic sheets stretch unevenly whenever heavy forces pull them.

Industrial applications need much tougher plastic materials. Standard PET works fine for regular wrapping tasks. Demanding factory jobs need stronger materials to handle heavy physical stress. Plain plastic tears and loses its shape under strong pulling forces. Unstretched films elongate under direct pressure. You should avoid unoriented sheets when building heavy-duty machinery components.

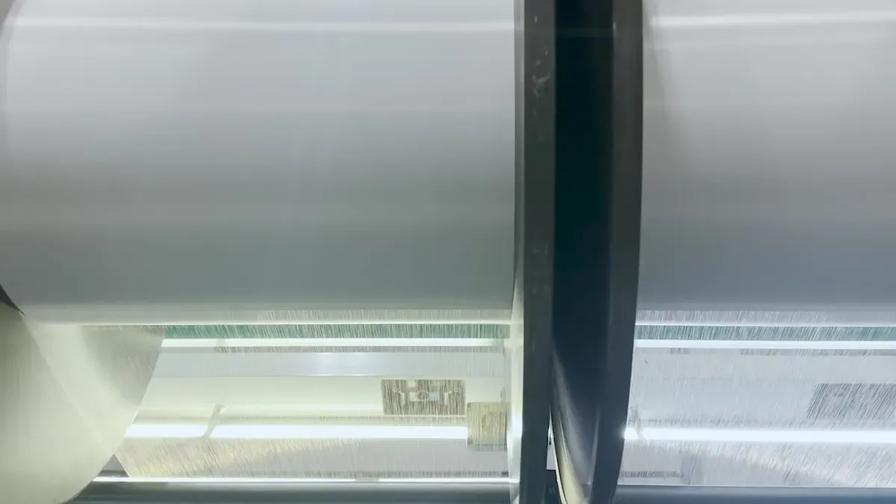

How Biaxial Stretching Creates BOPET

Mechanical Orientation Process

Machine Direction Orientation Stretching

You can turn regular PET plastic into a high-performance film by using a special stretching process. Large factory machines pull the thick, unstretched sheet along its length first. Workers call this starting step the machine direction (MD) orientation process. Fast-spinning rollers pull the warm plastic sheet forward in a smooth, carefully controlled sequence.

These rollers spin faster and faster to stretch the material down the line. Precise heaters warm the plastic sheet near its glass transition temperature (approximately 70–80°C) while the rollers pull it. This key step aligns the tangled plastic chains along the length of the sheet. The process makes the plastic layer much stronger in the machine direction.

Transverse Direction Orientation Stretching

Next, strong metal clamps grab the outer edges of the moving plastic sheet inside a hot oven. These clamps pull the sheet sideways to create biaxially oriented PET. The factory line pulls the material in the transverse direction to create balanced strength across the entire surface.

Factories use exact settings during this important two-way pulling process. Controlled heat helps the material stretch evenly without tearing the surface. The table below shows typical settings used in industrial stretching methods:

Molecular Alignment and Crystallization

Strain-Induced Crystallization Mechanics

Pulling forces the tangled plastic molecules to align in orderly rows. You cause strain-induced crystallization when you stretch the warm polyester material under steady pressure. This physical pulling action locks the long plastic chains into tighter, more ordered patterns.

Unstretched plastic resin lacks strong molecular order. Pulling the plastic two ways creates tiny crystalline regions throughout the material. These crystal structures boost the tensile strength and heat resistance of the finished BOPET film. The stretched plastic retains its dimensions better even under heat stress.

Polymer Chain Density and Structural Integrity

Stretching the sheet in two directions pulls the polymer chains closer together. This mechanical process builds a denser layout inside the stretched plastic layer. You get a tightly packed molecular structure across the polyester film surface.

This denser plastic structure slows the passage of gases and moisture vapor through the surface. The finished polyester sheet resists tearing under heavy pulling forces. You end up with strong BOPET film that offers balanced strength in both directions. Engineers select BOPET materials for demanding jobs because of this improved internal structure.

Key Differences: PET Film vs. BOPET

Tensile Strength and Dimensional Stability

Mechanical Load Resistance Comparison

You can see physical differences when you compare basic PET film with stretched BOPET film. Standard unoriented PET stretches easily under direct physical loads because its internal molecules remain loose. Biaxial orientation aligns the polymer chains to increase material strength significantly.

The mechanical orientation process changes key performance metrics during standard tension tests ^[1]:

• Unoriented PET (cast film): tensile strength 55–80 MPa, elongation at break 300–400%

• BOPET (e.g., Mylar®): tensile strength 150–220 MPa, elongation at break 70–130%

Thermal Shrinkage Under Elevated Temperatures

Standard polyester film softens in warm operating environments. Unaligned plastic sheet distorts when ambient temperatures rise. You need stable materials that maintain their exact dimensions during hot industrial applications.

Two-way mechanical stretching locks the polymer chain layout more securely in place. BOPET resists thermal shrinkage better under high heat while plain polyester warps more easily. This dimensional stability helps prevent alignment errors in automated factory machinery. Typical heat-set BOPET exhibits shrinkage of less than 2% at 150°C for 30 minutes, depending on grade and processing.

Barrier Properties and Optical Clarity

Haze Reduction and Visual Transparency

Stretching polyester film can reduce internal haze during production. The orientation process organizes crystalline regions into more uniform layers. You gain good optical clarity for screen overlays and electronic displays.

Good optical clarity allows light to travel through the material with minimal distortion. You can apply this clear layer over sensitive touch screens without significantly reducing visual brightness. The uniform surface quality supports consistent light transmission across the surface.

Moisture Vapor and Gas Barrier Performance

Tightly packed polymer molecules create improved barrier properties against moisture penetration. The oriented polyester network slows gas migration to help protect sensitive components from humidity and air exposure.

Dielectric and Electrical Insulation Properties

Breakdown Voltage Performance

Electrical machinery needs reliable dielectric protection to prevent short circuits. BOPET film handles high breakdown voltages reliably inside compact motor housings. You can use this durable PET film substrate inside electrical equipment for dielectric insulation.

The dense material structure helps resist electrical breakdown through thin layer walls. You achieve electrical isolation under continuous high-voltage operation. Engineers select oriented films to protect delicate copper windings. Typical dielectric strength for BOPET ranges from approximately 100 to 300 kV/mm, depending on film thickness and test conditions ^[2].

Surface Resistivity in Electrical Environments

Dense plastic structures provide high surface resistivity across changing climate conditions. Standard PET film delivers baseline properties, but oriented film offers improved electrical insulation. You can deploy this specialized plastic layer to help prevent current leakage across circuit paths during industrial applications.

The surface properties can also help reduce static charge buildup over time. You maintain consistent electrical performance across high-tech applications.

Industrial Applications of BOPET Film

Today's factories use BOPET film across many demanding applications. This material combines physical strength, heat resistance, and optical clarity for industrial uses.

Electrical Insulation and Energy Panel Backsheets

Motor Slot Insulation and Transformer Wrapping

Large machines need electrical protection to shield delicate copper wires. You can wrap electric motor parts with strong PET film layers to help prevent short circuits. Stretched plastic films provide good electrical resistance and mechanical toughness.

These materials offer voltage protection during motor operation. The table below lists typical performance values for electrical insulation applications:

Solar and New Energy Photovoltaic Backsheets

Solar panels require durable outdoor covers to withstand weather conditions over long service periods. You can use white polyester film backing in photovoltaic module backsheets to improve light reflection. These films contribute to UV resistance, moisture barrier, and electrical insulation for solar equipment.

Photovoltaic modules are typically designed for a 25-year service life, and the backsheet is one component selected to support this long-term durability target. Solar panel manufacturers focus on durable materials to reduce environmental impact. The plastic backing helps keep moisture away from sensitive power components.

Optical Displays and Consumer Electronics

Screen Protection Layers and Display Overlays

Modern touch screens need optical clarity plus scratch protection. You can use clear BOPET film as a protective layer over glass touch screens and personal electronics. The smooth plastic layer allows light to pass through with minimal haze.

Designers select these clear films for electronic screens and protective covers. The surface helps shield fragile glass displays against minor scratches. These PET film setups help protect devices during daily use.

Flexible Printed Circuit Board Substrates

Small electronics use thin internal circuits to save space inside outer cases. You can create lightweight flexible circuits by using BOPET base layers. The tough base sheet holds thin copper traces while maintaining dimensional stability.

This dense plastic resists tears during automated manufacturing steps. Electronics plants trust this strong BOPET base for flexible circuit designs. You get reliable circuit paths inside compact electronics cases.

High-Barrier Protective Packaging

Multi-Layer Laminates for Food and Pharmaceuticals

Food packaging plants use special wrapping to help preserve sensitive products. You can use high-barrier coated PET layers in food packaging. The oriented plastic structure helps slow the passage of oxygen, carbon dioxide, and water vapor.

Retort Pouch Barrier Packaging Films

Medical supplies and packaged foods need protective bags to prevent contamination. You can use flexible packaging pouches made with PET layers to seal goods. These multi-layer bags help protect medicine, tea, and coffee packs.

These films provide mechanical strength during heat sealing and vacuum packaging. They help keep food fresh without adding artificial chemicals. The plastic sheet resists accidental tears during shipping and shelf storage.

Sourcing YUXING BOPET Polyester Film for Industrial Projects

Partnering with YUXING for Factory-Direct Solutions

Demanding industrial jobs need reliable materials from established manufacturers. You can work with Jiangsu Yuxing Film Technology Co., Ltd. (YUXING) to source polyester film directly for your applications. The company operates BOPET production lines with widths up to 6.5 meters. According to company data, its annual production capacity reaches approximately 250,000 tons. You can select film thicknesses from 36 to 500 µm to fit your needs. YUXING products hold certifications including UL, RoHS, ISO, CNAS, and REACH. These compliance checks help support safe and reliable industrial use.

You can select specialized film types for unique applications. Automotive and architectural window films require optical clarity. YUXING offers clear window films in 23 µm and 50 µm thickness options. These window films report light transmittance of 89.54% to 89.81% and haze of 0.8% to 1.01%. Electrical insulation applications require dielectric strength to protect power equipment. Motor slot insulation films are available in 125, 150, and 188 µm thicknesses. These insulation films offer dielectric strength above 90 V/µm, tensile strength over 150 MPa, and controlled thermal shrinkage at elevated temperatures.

Selecting the right BOPET film helps your equipment operate reliably over time. Basic unoriented PET film can soften when temperatures rise. YUXING manufactures BOPET polyester film with improved dimensional stability under heat stress. Industrial production lines need consistent deliveries to keep running. Sourcing directly from the manufacturer helps ensure quality consistency across large orders. Factory workers convert raw plastic resin into oriented films with aligned molecular structures. Modern factories use these films to help protect delicate components. You can order custom film specifications to support your manufacturing processes. Buying directly from YUXING can help reduce overall costs while maintaining product quality.

Technical teams can help you select the right film for your operating conditions. You get expert guidance when choosing custom coatings, surface treatments, and exact thicknesses. Sourcing directly from the manufacturer can help shorten lead times. The plant tests every batch in its laboratories to check tensile strength, heat tolerance, and electrical insulation. You receive consistent physical properties across shipments. Partnering with an established manufacturer helps you meet project deadlines while maintaining product performance.

You now understand the key structural differences. Standard PET serves as the foundational chemical resin. In contrast, BOPET film delivers improved tensile strength, optical clarity, and heat resistance through biaxial mechanical stretching. Technical buyers evaluate thermal stability and dielectric strength for heavy-duty applications. Consequently, engineers choose BOPET over unoriented PET film to ensure reliable performance under demanding conditions.

Selecting the right material helps protect your project from equipment failures. You can upgrade your industrial applications by choosing custom solutions from Jiangsu Yuxing Film Technology Co., Ltd. Contact their technical team today to source high-grade YUXING BOPET polyester film tailored to your manufacturing needs.

FAQ

Is BOPET film chemically different from standard PET?
No. Both materials share the same chemical base, polyethylene terephthalate. However, stretching the plastic changes the internal physical structure of BOPET. This physical process aligns the polymer chains. As a result, it improves mechanical strength compared to standard unoriented PET film.

What does biaxial orientation mean for polyester film?
Biaxial orientation means factory machines stretch the plastic sheet in two directions. First, rollers pull the warm film lengthwise (machine direction). Next, clamps pull it sideways (transverse direction). This two-way stretching process improves material strength, heat resistance, and optical clarity.

Why do engineers choose BOPET over unoriented PET for electrical insulation?
Engineers select BOPET because biaxial stretching increases molecular density and dielectric strength. Standard unstretched PET can deform under high heat. In contrast, BOPET retains its dimensions better and handles elevated temperatures inside electrical motors and transformers.

Can you use BOPET film in protective food packaging?
Yes. BOPET film is commonly used in multi-layer laminates and protective packaging. Oriented polymer chains help slow oxygen, moisture, and carbon dioxide permeation. This plastic network helps keep food fresh and resists tears during transport and storage.

How does BOPET film improve display screen overlays?
Biaxial stretching helps organize light-scattering polymer crystals into more uniform layers. This structural alignment can reduce internal haze and improve light transmission. You get good optical clarity, gloss, and scratch resistance for touch screens and personal electronics.

Does BOPET film shrink under high temperatures?
BOPET offers improved heat resistance compared to unstretched polyester. Biaxial mechanical stretching followed by heat setting locks the polymer chain layout more securely. The stretched material resists thermal shrinkage better and retains its dimensions in hot working settings, though exact shrinkage values depend on film grade and heat-setting conditions.
