Heat-resistant Film

HomeElectrical Insulation FilmsHeat-resistant FilmCY30G Polyester Film

CY30G Polyester Film
CY30G Polyester Film

CY30G Polyester Film

CY30G is a milky white BOPET polyester film with low oligomer extraction value, good heat resistance, and refrigerant resistance. It also provides good dimensional stability and electrical insulation, and is mainly used in compressors requiring refrigerant resistance, motor slot insulation, and related fields.

Refrigerant resistance
Low oligomer extraction
Electrical insulation
Compressor
Motor slot insulation

Product Model:

CY30G

Key Highlights

Refrigerant resistance
Mainly used in compressors and related fields requiring refrigerant resistance.
Low oligomer extraction
Typical xylene extraction values are 0.8 / 0.7 / 0.6.
Heat resistance rating
Heat resistance rating is B according to UL746B.
Electrical insulation
Suitable for motor slot insulation and related applications.

Technology & Advantages

Compressor and motor insulation materials require refrigerant resistance, heat resistance, low extraction, and electrical insulation. CY30G is a milky white BOPET polyester film designed for compressor refrigerant resistance and motor slot insulation applications.

Core Values

Refrigerant resistance:
Provides reliable performance in compressors and refrigeration systems. Withstands harsh chemical environments while maintaining mechanical and electrical integrity.
Low extraction:
Low xylene extraction values (0.6-0.8%) minimize oligomer migration. Ensures clean operation and long-term reliability in sealed compressor systems.
Thermal stability:
Heat resistance rating B according to UL746B. Maintains dimensional stability and performance under elevated temperature conditions.
Electrical insulation:
Provides dielectric strength (65-90 V/μm) for motor slot insulation. Ensures reliable protection against electrical breakdown in compressor and motor applications.

Applications

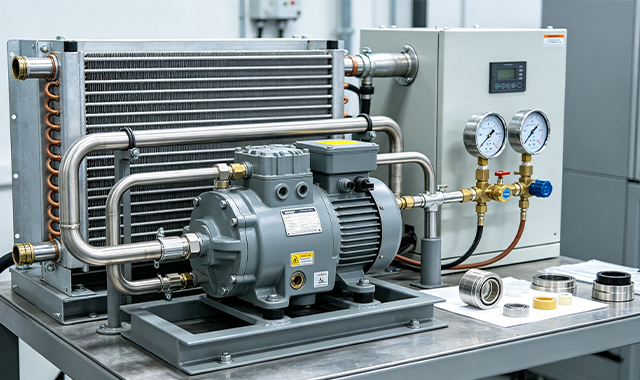

Compressor
Used in compressor applications requiring refrigerant resistance.
Motor slot insulation
Used in motor slot insulation structures.

Technical Specifications

PropertiesUnitStandardTypical Value
ThicknessμmGB/T 13542.2-2021125 / 188 / 250
Tensile Strength - MDMPaGB/T 13542.2-2021150 / 160 / 160
Tensile Strength - TDMPaGB/T 13542.2-2021160 / 170 / 170
Elongation at Break - MD%GB/T 13542.2-2021110 / 120 / 120
Elongation at Break - TD%GB/T 13542.2-2021100 / 100 / 100
Dimensional Stability @150°C, 30min - MD%TDS1.5 / 1.5 / 1.5
Dimensional Stability @150°C, 30min - TD%TDS0.8 / 0.8 / 0.8
Transmittance%ASTM D100355 / 56 / 57
Dielectric StrengthV/μmGB/T 1408.1-201690 / 70 / 65
Xylene Extraction Value%TDS0.8 / 0.7 / 0.6
Heat Resistance Rating-UL746BB / B / B


Remark: Values above are typical performance values from the TDS.

Packaging & Logistics

Storage Conditions
Store the product in a clean, dry, and ventilated place.
Storage Environment
Keep away from fire, heating sources, and direct sunlight.
Pallet
Fumigation-free wooden pallets suitable for export transportation.
Label Information
Each roll label includes model, batch number, thickness, width, net weight, and production date for traceability.
Slitting Range
Different slit widths can be supplied according to customer laminating equipment and production requirements.
Supply Note
Regular specifications support batch supply. Lead time depends on order specifications, quantity, and production schedule.
Packaging img (1).webp

Frequently Asked Questions

Q: What is CY30G mainly used for?
A: It is mainly used in compressors requiring refrigerant resistance, motor slot insulation, and related fields.
Q: What is the heat resistance rating of CY30G?
A: The TDS lists heat resistance rating B according to UL746B.
Q: What are the extraction values of CY30G?
A: Typical xylene extraction values are 0.8, 0.7, and 0.6.
Q: Can samples be provided for testing?
A: Yes, samples or small rolls can be provided according to project requirements for lamination, laminating and performance validation tests.
