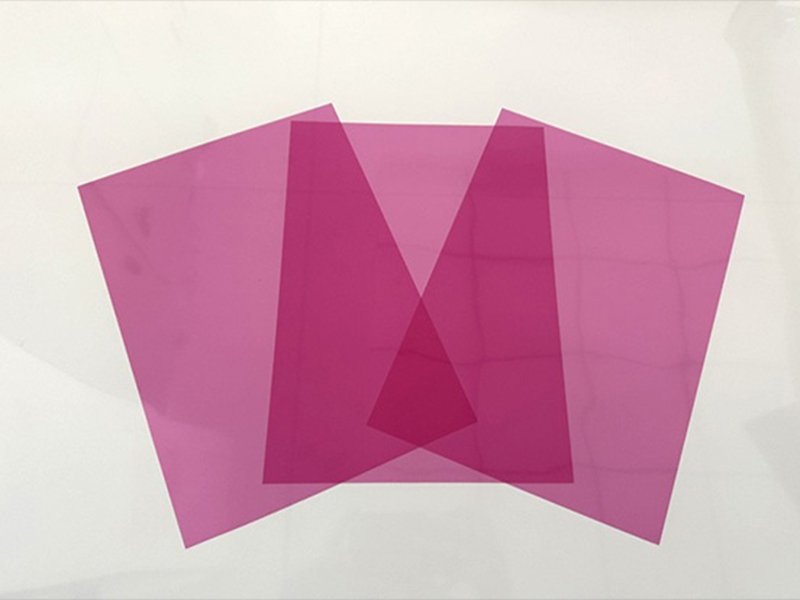

CY20RR Polyester film for photoelectric display

CY20RR Polyester film for photoelectric display

Rose red transparent polyester film with excellent mechanical properties, heat resistance properties, uniform colored, not faded. Mainly used in indoor and outdoor decoration, release film substrate, printing and other fields etc. Standard thickness: 50μm, 75μm. Other thickness can be customized according to customer's specific requirement.

Customizable

Colored film

PET base film

Display materials

Photoelectric display

Product Model:

CY20RR

Key Highlights

Heat resistance properties

Maintains dimensional stability with controlled shrinkage under high-temperature conditions.

Uniform color with excellent color retention and resistance to fading

Stable rose red color achieved through colored raw materials and special process technology.

Technology & Advantages

CY20CRR achieves its color by using colored raw materials, ensuring excellent color uniformity. A special process is also applied to provide strong color retention and resistance to fading.

Core Values

Heat Resistance:
Maintains good dimensional stability with controlled shrinkage under high-temperature conditions. Ensures reliable performance during downstream processing and end-use applications requiring thermal durability.

Excellent Mechanical Properties:
Provides robust mechanical strength and flexibility. Supports downstream processing such as lamination, coating, and related converting operations with consistent performance.

Color Stability:
Uniform rose red color achieved through colored raw materials. Special process ensures stable, fade-resistant performance with excellent color retention for long-term decorative applications.

Applications

Decorative

Excellent mechanical properties, heat resistance properties, uniform colored, not faded. Mainly used in indoor and outdoor decoration

Release and Printing Film

USD in release film substrate, printing and other fields etc.

Tape

Base film for colored adhesive tapes.

Protection

Protective film for electronic products.

Technical Specifications

Property	Property	Unit	Index	Index	Test method
Thickness	Thickness	μm	50	75	GB/T 13542.2-2021
Tensile strength	MD	MPa	154	158	GB/T 13542.2-2021
Tensile strength	TD	MPa	184	188	GB/T 13542.2-2021
Elongation at break	MD	%	113	130	GB/T 13542.2-2021
Elongation at break	TD	%	89	105	GB/T 13542.2-2021
Heat shrinkage (150℃,30min)	MD	%	1.3	1.2	GB/T 13542.2-2021
Heat shrinkage (150℃, 30min)	TD	%	0.2	0.2	GB/T 13542.2-2021
Wetting tension	Electricity	mN/m	52	52	GB/T 14216-2008
Light transmittance	Light transmittance	%	68	62	GB/T 2410--2008
Haze	Haze	%	2.5	3.4	GB/T 2410--2008
Electrical strength	Electrical strength	V/μm	130	110	GB/T 1408.1-2016
Note: ① MD = Machine Direction; TD = Transverse Direction. / ② All items are subject to factory inspection. / ③ Performance values for nominal thicknesses other than the recommended/preferred ones are derived via interpolation. / ④ The values above are typical, not guaranteed.

Remark: The parameter table is from the original TDS. MD refers to machine direction and TD refers to transverse direction; inspection type and typical value notes follow the original TDS.
